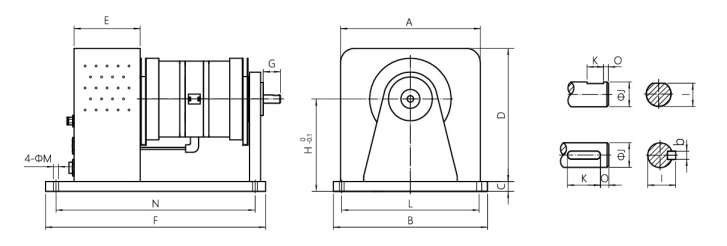

HZC型（0.03-2N•m）短板磁滯測功機外形尺寸
|
型號
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
φJ(h6)
|
K
|
L
|
φM
|
N
|
O
|
|
HZC-0.03S
|
216
|
280
|
15
|
160
|
180
|
220
|
17
|
95
|
3.7
|
4
|
6
|
250
|
9
|
200
|
1.5
|
|
HZC-0.05S
|
216
|
280
|
15
|
160
|
180
|
220
|
17
|
95
|
4.5
|
5
|
8
|
250
|
9
|
200
|
2
|
|
HZC-0.1S
|
216
|
280
|
15
|
160
|
180
|
220
|
17
|
95
|
5.2
|
6
|
8
|
250
|
9
|
200
|
2
|
|
HZC-0.2S
|
216
|
280
|
15
|
160
|
180
|
220
|
17
|
95
|
5.2
|
6
|
8
|
250
|
9
|
200
|
2
|
|
HZC-0.3S
|
216
|
280
|
15
|
160
|
180
|
220
|
17
|
95
|
7.2
|
8
|
10
|
250
|
9
|
200
|
2
|
|
HZC-0.5S
|
216
|
280
|
15
|
160
|
180
|
220
|
17
|
95
|
7.2
|
8
|
10
|
250
|
9
|
200
|
2
|
|
HZC-1S
|
226
|
280
|
15
|
180
|
200
|
241
|
22
|
115
|
9
|
10
|
10
|
250
|
9
|
216
|
2
|
|
HZC-2S
|
226
|
280
|
15
|
180
|
200
|
241
|
22
|
115
|
11
|
12
|
12
|
250
|
9
|
216
|
3
|
HZC-L型（0.01-2N•m）長板磁滯測功機外形尺寸
|
型號
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
φJ(h6)
|
K
|
L
|
φM
|
N
|
O
|
|
HZC-0.01L
|
216
|
249
|
15
|
160
|
180
|
432
|
14.5
|
80
|
2.7
|
3
|
3
|
200
|
9
|
400
|
1.5
|
|
HZC-0.02L
|
216
|
249
|
15
|
160
|
180
|
432
|
14.5
|
80
|
2.7
|
3
|
3
|
200
|
9
|
400
|
1.5
|
|
HZC-0.03L
|
216
|
249
|
15
|
160
|
180
|
432
|
17
|
80
|
3.7
|
4
|
6
|
200
|
9
|
400
|
1.5
|
|
HZC-0.05L
|
216
|
249
|
15
|
160
|
180
|
432
|
17
|
80
|
4.5
|
5
|
8
|
200
|
9
|
400
|
2
|
|
HZC-0.1L
|
216
|
249
|
15
|
160
|
180
|
432
|
17
|
80
|
5.2
|
6
|
8
|
200
|
9
|
400
|
2
|
|
HZC-0.2L
|
216
|
249
|
15
|
160
|
180
|
432
|
17
|
80
|
5.2
|
6
|
8
|
200
|
9
|
400
|
2
|
|
HZC-0.3L
|
216
|
249
|
15
|
160
|
180
|
432
|
17
|
80
|
7.2
|
6
|
8
|
200
|
9
|
400
|
2
|
|
HZC-0.5L
|
216
|
249
|
15
|
160
|
180
|
432
|
17
|
80
|
7.2
|
6
|
8
|
200
|
9
|
400
|
2
|
|
HZC-1L
|
226
|
249
|
15
|
180
|
200
|
500
|
22
|
100
|
9
|
10
|
10
|
225
|
9
|
483
|
2
|
|
HZC-2L
|
226
|
280
|
15
|
180
|
200
|
550
|
22
|
100
|
11
|
12
|
12
|
230
|
9
|
483
|
3
|
HZC型（3-100N•m）磁滯測功機外形尺寸
|
型號
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
φJ(h6)
|
K
|
L
|
φM
|
N
|
O
|
b
|
|
HZC-3
|
254
|
280
|
20
|
242
|
120
|
318
|
31
|
170
|
14
|
15
|
10
|
160
|
9
|
288
|
3
|
|
|
HZC-5
|
284
|
310
|
20
|
282
|
130
|
380
|
30
|
200
|
16
|
17
|
10
|
250
|
9
|
350
|
3
|
|
|
HZC-6
|
254
|
280
|
20
|
242
|
120
|
400
|
31
|
170
|
14
|
15
|
10
|
250
|
9
|
362
|
3
|
|
|
HZC-10
|
356
|
432
|
30
|
370
|
120
|
457
|
53
|
260
|
28
|
25
|
330
|
400
|
10.5
|
358
|
5
|
8
|
|
HZC-12
|
356
|
432
|
30
|
370
|
120
|
457
|
53
|
260
|
28
|
25
|
30
|
400
|
10.5
|
358
|
5
|
8
|
|
HZC-24
|
356
|
432
|
35
|
370
|
132
|
584
|
53
|
260
|
28
|
25
|
30
|
400
|
10.5
|
485
|
5
|
8
|
|
HZC-30
|
356
|
432
|
35
|
370
|
132
|
584
|
53
|
265
|
28
|
25
|
30
|
400
|
10.5
|
485
|
5
|
8
|
|
HZC-40
|
465
|
550
|
45
|
480
|
150
|
720
|
53
|
305
|
28
|
25
|
30
|
500
|
13
|
660
|
5
|
8
|
|
HZC-50
|
465
|
550
|
45
|
480
|
150
|
720
|
53
|
305
|
28
|
25
|
30
|
500
|
13
|
660
|
5
|
8
|
|
HZC-100
|
545
|
700
|
45
|
480
|
150
|
850
|
53
|
305
|
33
|
30
|
30
|
640
|
13
|
750
|
5
|
8
|
|
