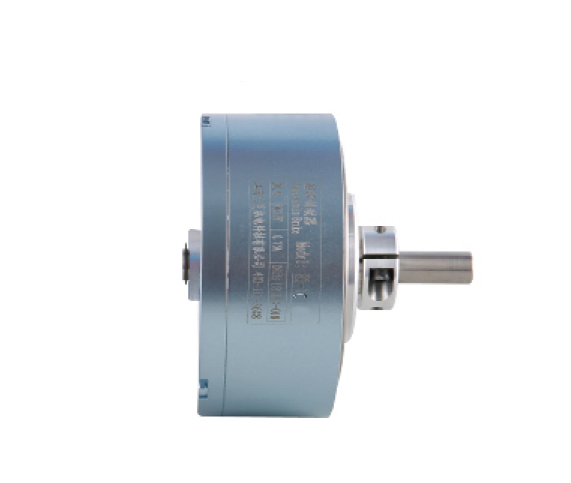

| HZ-C型右出軸磁滯制動器 |
| 來源： 點擊數：14895次 更新時間：2019/1/10 16:30:42 |
HZ-C右出軸磁滯制動器外形尺寸
|
型號
|
φA
|
φB(H6)
|
φC(H6)
|
D
|
E
|
F
|
G
|
H
|
I
|
K
|
φL
|
M
|
N
|
|
HZ-0.003C
|
35
|
2
|
6
|
0.4
|
-
|
20
|
40
|
13
|
23.5
|
3-M3↓5
|
20
|
-
|
-
|
|
HZ-0.02C
|
35
|
3
|
8
|
0.5
|
-
|
22
|
40
|
10.7
|
25.8
|
3-M3↓5
|
20
|
8
|
2.7
|
|
HZ-0.03C
|
42
|
4
|
11
|
0.5
|
-
|
23.5
|
46
|
14
|
28.5
|
3-M3↓5
|
26
|
10
|
3.6
|
|
HZ-0.05C
|
42
|
4
|
11
|
0.5
|
-
|
23.5
|
46
|
14
|
28.5
|
3-M3↓5
|
26
|
10
|
3.6
|
|
HZ-0.07C
|
46
|
5
|
13
|
0.6
|
1.5
|
23.2
|
48
|
14
|
28.5
|
3-M3↓6
|
26
|
10
|
4.6
|
|
HZ-0.1C
|
53
|
6
|
15
|
0.8
|
2
|
26
|
58
|
21
|
32
|
3-M3↓6
|
30
|
12
|
5.5
|
|
HZ-0.2C
|
58
|
6
|
15
|
0.8
|
2
|
27
|
58
|
20
|
32
|
3-M4↓6
|
30
|
12
|
5.5
|
|
HZ-0.3C
|
69
|
8
|
22
|
1
|
3
|
35
|
72
|
25.5
|
41
|
3-M4↓8
|
40
|
15
|
7.2
|
|
HZ-0.5C
|
69
|
8
|
22
|
1
|
3
|
35
|
72
|
25.5
|
41
|
3-M4↓8
|
40
|
15
|
7.2
|
|
HZ-1C
|
91
|
10
|
22
|
1
|
2
|
40
|
84
|
27
|
51
|
3-M4↓10
|
38
|
18
|
9
|
|
HZ-2C
|
115
|
12
|
28
|
1
|
4
|
51
|
104
|
31.4
|
64.5
|
3-M5↓10
|
70
|
鍵槽（見下表）
|
|
HZ-2C
|
138
|
15
|
32
|
1.2
|
3.5
|
53
|
118
|
20
|
79.8
|
3-M5↓10
|
80
|
|
HZ-5C
|
157
|
17
|
35
|
1.2
|
4
|
73
|
146
|
38
|
100.5
|
3-M6↓10
|
90
|
|
HZ-6C
|
157
|
17
|
35
|
1.2
|
4
|
73
|
146
|
38
|
100.5
|
3-M6↓10
|
90
|
|
HZ-10C
|
226
|
25
|
52
|
1.3
|
6
|
76.5
|
167
|
48
|
108.9
|
3-M6↓12
|
100
|
|
HZ-12C
|
226
|
25
|
52
|
1.3
|
6
|
76.5
|
167
|
48
|
108.9
|
3-M6↓12
|
100
|
|
HZ-15C
|
226
|
25
|
52
|
1.3
|
6
|
76.5
|
167
|
48
|
108.9
|
3-M6↓12
|
100
|
|
型號
|
φB(h6)
|
a
|
b
|
c
|
d
|
|
HZ-2C
|
12
|
20
|
4
|
5
|
13.5
|
|
HZ-3C
|
15
|
20
|
5
|
6
|
17
|
|
HZ-5C
|
17
|
20
|
5
|
6
|
20
|
|
HZ-10C
|
25
|
25
|
8
|
12.5
|
28
|
|
HZ-12C
|
25
|
25
|
8
|
12.5
|
28
|
|
HZ-15C
|
25
|
25
|
8
|
12.5
|
28
|
|
